Wastewater

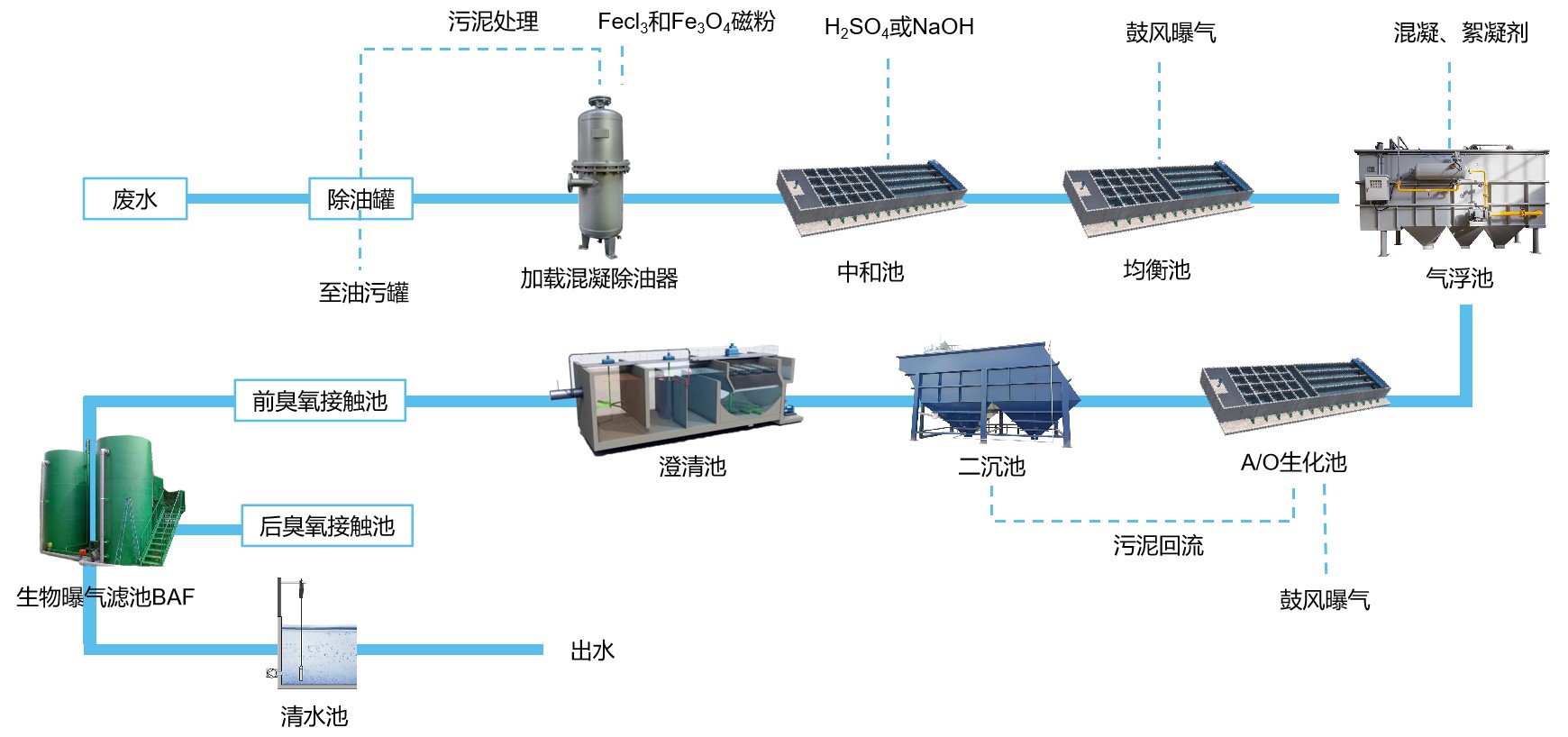

Process Flow Diagram

Technical Reserve

Integrating membrane concentration (DTRO/MVR) with AI-based dynamic dosing technology, achieve zero liquid discharge (ZLD) and resource recycling of high-salinity wastewater, with crystallized salt purity ≥98% and comprehensive recovery rate ≥95%.

1、High-salinity Concentration Technology: DTRO membranes resist Cl⁻ corrosion with recovery rate ≥85%, effectively reducing chemical consumption.

2、Corrosion-resistant Crystallization Process: Titanium alloy evaporators adapt to complex wastewater compositions, leading the industry in salt purification efficiency.

3、Rapid Solid-liquid Separation: Magnetic coagulation sedimentation technology achieves effluent turbidity ≤1 NTU, significantly improving treatment efficiency.

Industrialization Advantages

Through modular integration and process innovation, significantly reduce investment costs and operational complexity.

1、Prefabricated System Delivery: Evaporation-crystallization skid-mounted modules deployed within 120 days, significantly reducing floor space.

2、In-house Corrosion-resistant Equipment: Custom FRP tanks with service life ≥15 years, leading to substantial operational cost reduction.

3、Full-process Intelligent Monitoring: SCADA system optimizes energy consumption and chemical dosing in real time, significantly lowering maintenance costs.
